Autor Tópico: Arduino Keypad num Dodge Caliber  (Lida 2161 vezes)

0 Membros e 1 Visitante estão a ver este tópico.

Offline TigPT

  • Administrator
  • Mini Robot
  • *****
  • Mensagens: 5.159
    • Tiago Rodrigues
Arduino Keypad num Dodge Caliber
« em: 02 de Julho de 2009, 16:42 »
Parece que o arduino agora até já serve para abrir carros... mas só abre ao dono :P

Vejam este excelente projecto:

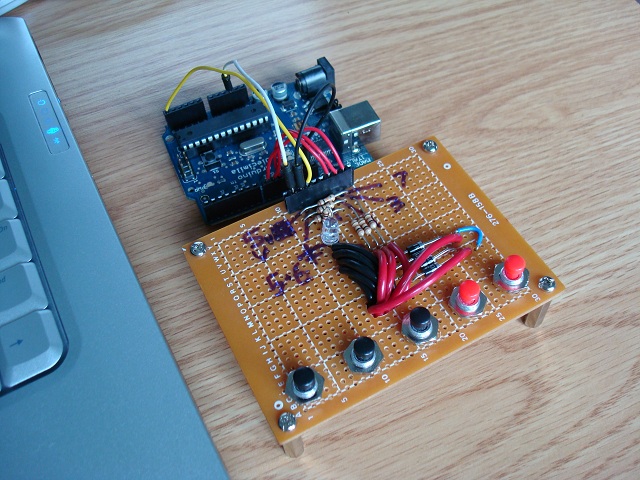

Ford Keypad on Dodge Caliber Small | Large




Fonte:
http://www.caliberforumz.com/showthread.php?t=24348&page=5
« Última modificação: 05 de Julho de 2009, 11:16 por TigPT »

Offline Z

  • Mini Robot
  • *
  • Mensagens: 32
Re:Arduino Keypad num Dodge Caliber
« Responder #1 em: 02 de Julho de 2009, 16:43 »
brutal!!

Offline Fifas

  • Administrator
  • Mini Robot
  • *****
  • Mensagens: 2.042
  • El RoboSapiens
Re:Arduino Keypad num Dodge Caliber
« Responder #2 em: 02 de Julho de 2009, 16:44 »
looool

muito porreiro....

mas nao tou a ver andarem com isto nos carros :P

Offline wear

  • Mini Robot
  • *
  • Mensagens: 84
Re:Arduino Keypad num Dodge Caliber
« Responder #3 em: 02 de Julho de 2009, 16:49 »
fantástico  ;D

Offline AngellS

  • Mini Robot
  • *
  • Mensagens: 86
Re:Arduino Keypad num Dodge Caliber
« Responder #4 em: 02 de Julho de 2009, 16:52 »
Muito Bom Sim Senhor :P

Metallica Fan - Big Show At Rock In Rio, Lisbon 2008
---
Angell'S

Offline Ricardo_91

  • Mini Robot
  • *
  • Mensagens: 48
Re:Arduino Keypad num Dodge Caliber
« Responder #5 em: 02 de Julho de 2009, 17:34 »
já tinha visto este sistema implementado numa limusina ;D que veio do Canadá, e os dois últimos botões também eram para trancar o carro :)

mas nunca tinha visto com um arduino
Ricardo Vieira


Offline PDI

  • Mini Robot
  • *
  • Mensagens: 677
Re:Arduino Keypad num Dodge Caliber
« Responder #6 em: 02 de Julho de 2009, 20:44 »
Só demonstra as possibilidades do arduino
Alfredo Garcia

Offline dio123

  • Mini Robot
  • *
  • Mensagens: 913
Re:Arduino Keypad num Dodge Caliber
« Responder #7 em: 02 de Julho de 2009, 23:22 »
dá segurança ao carro, mas um painel de numeros ao lado do puxador fica feio.

mas nao entanto o sistema é bastante bom.

Offline TigPT

  • Administrator
  • Mini Robot
  • *****
  • Mensagens: 5.159
    • Tiago Rodrigues
Re:Arduino Keypad num Dodge Caliber
« Responder #8 em: 05 de Julho de 2009, 11:16 »
Fica o código:


Código: [Seleccione]
// Car Keypad
// Version 1.0
//
// Michael Casson Rogers (michael.casson@yahoo.com)
// June 14th, 2009
//
// I designed this program to emulate a Ford keypad as much as possible.  I missed the one on my Lincoln.
//
// To unlock the car, type in the 5-digit 'factory' code.
// To lock the car, press the last two buttons together.
//
// Program up to three additional 'user' codes:
// Type the 'factory' code, then 1, then a new 5-digit code, and finish by pressing one of the first three buttons.
// Your new user code is now saved to that position.  The car will confirm by locking and unlocking the doors.
// You can overwrite the code by saving another to the same position.
//
// Erase all user codes:
// Type the 'factory' code, then 1, then press 1 again and hold for two seconds.  The car will confirm by locking
// and unlocking the doors.
//
// Input keys are assigned values 1, 3, 5, 7, and 9.
//
// Time out (reset input keys) after programmable time (default 5 seconds).  All key presses must be pressed within
// this time from each other to be considered together.  The backlight will turn off after timeout.
//
// Big thanks to Gian Pablo Villamil.  I used  his Simple Simon 2.0 to get me started.
// http://itp.nyu.edu/~gpv206/2006/09/simple_simon_v2.html
//
// and thanks to the many helpful people at Arduino Forum!
// http://www.arduino.cc
// For reading and storing user generated codes.
#include <EEPROM.h>
// Define the pin assignments for the input switches
#define KeyPin1 10
#define KeyPin3 9
#define KeyPin7 8
// Define backlight pin.
#define BackLight 19
// Define the pins the lock and unlock relays are connected to.
#define LockPin 15
#define UnlockPin 16

#define DebounceTime 20 // debounce time in milliseconds
#define PulseTime 150 // debounce time in milliseconds
#define TimeOutTime 5000 // timeout in milliseconds
int CodeArray[5] = {1, 3, 5, 7, 9}; // Enter desired combination code here, must be 5 digits. Use only 1, 3, 5, 7, and 9.
int InputArray[14] = {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}; // Starts InputArray with all 0's
int UserCodeArray1[5] = {EEPROM.read(0), EEPROM.read(1), EEPROM.read(2), EEPROM.read(3), EEPROM.read(4)};
int UserCodeArray2[5] = {EEPROM.read(5), EEPROM.read(6), EEPROM.read(7), EEPROM.read(8), EEPROM.read(9)};
int UserCodeArray3[5] = {EEPROM.read(10), EEPROM.read(11), EEPROM.read(12), EEPROM.read(13), EEPROM.read(14)};
int buttonPressed = 0;
int buttonPresses = 0;

// Remember when last press was for timeout function.
// Also, set lastPress as having just timed out so that the backlight doesn't light for the first few
// seconds on initialization because lastPress and millis are both zero.
unsigned long lastPress = millis() - (TimeOutTime + 1);
// counter for debouncing routine
unsigned long SwitchDownTime ;
// Define inputScore (used to compare InputArray to CodeArray)
int inputScore = 0 ;

void setup () {
//Serial.begin(9600);           // set up Serial library at 9600 bps, used for debugging.
pinMode(BackLight, OUTPUT);
pinMode(LockPin, OUTPUT);
pinMode(UnlockPin, OUTPUT);
pinMode(KeyPin1, INPUT);
pinMode(KeyPin3, INPUT);
pinMode(KeyPin7, INPUT);
}
// Main loop - should be easy to follow
void loop () {
//    Serial.println("loop");
getInput ();
timeOut ();
antiScan();
}
// Get the user's button presses and store it in InputArray
void getInput () {
//  Serial.println("getInput");
//Button 1
    if (digitalRead(KeyPin1) == LOW && digitalRead(KeyPin3) == HIGH && digitalRead(KeyPin7) == HIGH) {
      SwitchDownTime = millis(); // Record time it went down (for debounce)
      digitalWrite(BackLight, HIGH); // Light backlight while pressed
      while (digitalRead(KeyPin1) == LOW && digitalRead(KeyPin3) == HIGH && digitalRead(KeyPin7) == HIGH) {
        // Wait while a button is pressed
        if (millis() - SwitchDownTime > DebounceTime && buttonPressed == 0) { // If button has been down longer than debounce
          buttonPress(1);
        }
        if (millis() - SwitchDownTime > 2000 &&
            InputArray[5] == CodeArray[0] &&
            InputArray[6] == CodeArray[1] &&
            InputArray[7] == CodeArray[2] &&
            InputArray[8] == CodeArray[3] &&
            InputArray[9] == CodeArray[4] &&
            InputArray[10] == 0 &&
            InputArray[11] == 1 &&
            InputArray[12] == 2 &&
            InputArray[13] == 1) {
              eraseUserCodes();
        }
      }
      buttonPressed = 0;
      lastPress = millis() ; //Needed here also, in case button is held down for more than timeout value
    } // end if
//Button 3
    if (digitalRead(KeyPin1) == LOW && digitalRead(KeyPin3) == HIGH && digitalRead(KeyPin7) == LOW) {
      SwitchDownTime = millis(); // Record time it went down (for debounce)
      digitalWrite(BackLight, HIGH); // Light backlight while pressed
      while (digitalRead(KeyPin1) == LOW && digitalRead(KeyPin3) == HIGH && digitalRead(KeyPin7) == LOW) {
       // Wait while a button is pressed
        if (millis() - SwitchDownTime > DebounceTime && buttonPressed == 0) { // If button has been down longer than debounce
          buttonPress(3);
        }
      }
      buttonPressed = 0;
      lastPress = millis() ; //Needed here also, in case button is held down for more than timeout value
    } // end if
//Button 5
    if (digitalRead(KeyPin1) == LOW && digitalRead(KeyPin3) == LOW && digitalRead(KeyPin7) == HIGH) {
      SwitchDownTime = millis(); // Record time it went down (for debounce)
      digitalWrite(BackLight, HIGH); // Light backlight while pressed
      while (digitalRead(KeyPin1) == LOW && digitalRead(KeyPin3) == LOW && digitalRead(KeyPin7) == HIGH) {
       // Wait while a button is pressed
        if (millis() - SwitchDownTime > DebounceTime && buttonPressed == 0) { // If button has been down longer than debounce
          buttonPress(5);
        }
      }
      buttonPressed = 0;
      lastPress = millis() ; //Needed here also, in case button is held down for more than timeout value
    } // end if
//Button 7
    if (digitalRead(KeyPin1) == HIGH && digitalRead(KeyPin3) == LOW && digitalRead(KeyPin7) == HIGH) {
      SwitchDownTime = millis(); // Record time it went down (for debounce)
      digitalWrite(BackLight, HIGH); // Light backlight while pressed
      while (digitalRead(KeyPin1) == HIGH && digitalRead(KeyPin3) == LOW && digitalRead(KeyPin7) == HIGH) {
       // Wait while a button is pressed
        if (millis() - SwitchDownTime > DebounceTime && buttonPressed == 0) { // If button has been down longer than debounce
          buttonPress(7);
        }
      }
      buttonPressed = 0;
      lastPress = millis() ; //Needed here also, in case button is held down for more than timeout value
    } // end if
//Button 9
    if (digitalRead(KeyPin1) == HIGH && digitalRead(KeyPin3) == HIGH && digitalRead(KeyPin7) == LOW) {
      SwitchDownTime = millis(); // Record time it went down (for debounce)
      digitalWrite(BackLight, HIGH); // Light backlight while pressed
      while (digitalRead(KeyPin1) == HIGH && digitalRead(KeyPin3) == HIGH && digitalRead(KeyPin7) == LOW) {
       // Wait while a button is pressed
        if (millis() - SwitchDownTime > DebounceTime && buttonPressed == 0) { // If button has been down longer than debounce
          buttonPress(9);
        }
      }
      buttonPressed = 0;
      lastPress = millis() ; //Needed here also, in case button is held down for more than timeout value
    } // end if
//Button 7&9 (Lock)
    if (digitalRead(KeyPin1) == HIGH && digitalRead(KeyPin3) == LOW && digitalRead(KeyPin7) == LOW) {
      SwitchDownTime = millis(); // Record time it went down (for debounce)
      digitalWrite(BackLight, HIGH); // Light backlight while pressed
      while (digitalRead(KeyPin1) == HIGH && digitalRead(KeyPin3) == LOW && digitalRead(KeyPin7) == LOW) {
      digitalWrite(LockPin, HIGH); // Wait while a button is pressed
      }
    digitalWrite(LockPin, LOW);
    lastPress = millis() - (TimeOutTime + 1);
    timeOut ();
    delay(200);  //For when people let go of lock, it doesn't turn the light back on when one button is pressed longer (milliseconds!) than the other.
    } // end if
} // end GetAnswer
// Compare CodeArray with InputArray
void checkAnswer () {
//  Serial.println("checkAnswer");
//// Print current InputArray for debugging
//  for (int i = 0; i <= 13; i++) {
//    Serial.print(InputArray[i]);
//  }
//  Serial.print(" ");
//  Serial.print(buttonPresses);
//  Serial.println();
//// End print current InputArray

  if (InputArray[7] == CodeArray[0] &&
      InputArray[8] == CodeArray[1] &&
      InputArray[9] == CodeArray[2] &&
      InputArray[10] == CodeArray[3] &&
      InputArray[11] == CodeArray[4] &&
      InputArray[12] == 0 &&
      InputArray[13] == 1) {
        buttonPress(2);
        buttonPresses = 0;
  }

  if (InputArray[0] == CodeArray[0] &&
      InputArray[1] == CodeArray[1] &&
      InputArray[2] == CodeArray[2] &&
      InputArray[3] == CodeArray[3] &&
      InputArray[4] == CodeArray[4] &&
      InputArray[5] == 0 &&
      InputArray[6] == 1 &&
      InputArray[7] == 2 &&
      InputArray[13] == 1) {
//    Serial.print("Adding New Code: ");
//    Serial.print(InputArray[7]);
//    Serial.print(InputArray[8]);
//    Serial.print(InputArray[9]);
//    Serial.print(InputArray[10]);
//    Serial.println(InputArray[11]);
    EEPROM.write(0, InputArray[8]);
    EEPROM.write(1, InputArray[9]);
    EEPROM.write(2, InputArray[10]);
    EEPROM.write(3, InputArray[11]);
    EEPROM.write(4, InputArray[12]);
//    Serial.println("New Code Added");
    UserCodeArray1[0] = EEPROM.read(0);
    UserCodeArray1[1] = EEPROM.read(1);
    UserCodeArray1[2] = EEPROM.read(2);
    UserCodeArray1[3] = EEPROM.read(3);
    UserCodeArray1[4] = EEPROM.read(4);
    doorConfirm();
  }

  if (InputArray[0] == CodeArray[0] &&
      InputArray[1] == CodeArray[1] &&
      InputArray[2] == CodeArray[2] &&
      InputArray[3] == CodeArray[3] &&
      InputArray[4] == CodeArray[4] &&
      InputArray[5] == 0 &&
      InputArray[6] == 1 &&
      InputArray[7] == 2 &&
      InputArray[13] == 3) {
//    Serial.print("Adding New Code: ");
//    Serial.print(InputArray[7]);
//    Serial.print(InputArray[8]);
//    Serial.print(InputArray[9]);
//    Serial.print(InputArray[10]);
//    Serial.println(InputArray[11]);
    EEPROM.write(5, InputArray[8]);
    EEPROM.write(6, InputArray[9]);
    EEPROM.write(7, InputArray[10]);
    EEPROM.write(8, InputArray[11]);
    EEPROM.write(9, InputArray[12]);
//    Serial.println("New Code Added");
    UserCodeArray2[0] = EEPROM.read(5);
    UserCodeArray2[1] = EEPROM.read(6);
    UserCodeArray2[2] = EEPROM.read(7);
    UserCodeArray2[3] = EEPROM.read(8);
    UserCodeArray2[4] = EEPROM.read(9);
    doorConfirm();
  }

  if (InputArray[0] == CodeArray[0] &&
      InputArray[1] == CodeArray[1] &&
      InputArray[2] == CodeArray[2] &&
      InputArray[3] == CodeArray[3] &&
      InputArray[4] == CodeArray[4] &&
      InputArray[5] == 0 &&
      InputArray[6] == 1 &&
      InputArray[7] == 2 &&
      InputArray[13] == 5) {
//    Serial.print("Adding New Code: ");
//    Serial.print(InputArray[7]);
//    Serial.print(InputArray[8]);
//    Serial.print(InputArray[9]);
//    Serial.print(InputArray[10]);
//    Serial.println(InputArray[11]);
    EEPROM.write(10, InputArray[8]);
    EEPROM.write(11, InputArray[9]);
    EEPROM.write(12, InputArray[10]);
    EEPROM.write(13, InputArray[11]);
    EEPROM.write(14, InputArray[12]);
//    Serial.println("New Code Added");
    UserCodeArray3[0] = EEPROM.read(10);
    UserCodeArray3[1] = EEPROM.read(11);
    UserCodeArray3[2] = EEPROM.read(12);
    UserCodeArray3[3] = EEPROM.read(13);
    UserCodeArray3[4] = EEPROM.read(14);
    doorConfirm();
  }

  //Entered Programming Mode, but tried to store in 7, not an option.
  if (InputArray[0] == CodeArray[0] &&
      InputArray[1] == CodeArray[1] &&
      InputArray[2] == CodeArray[2] &&
      InputArray[3] == CodeArray[3] &&
      InputArray[4] == CodeArray[4] &&
      InputArray[5] == 0 &&
      InputArray[6] == 1 &&
      InputArray[7] == 2 &&
      InputArray[13] == 7) {
        clearArray();
      }

  //Entered Programming Mode, but tried to store in 9, not an option.
  if (InputArray[0] == CodeArray[0] &&
      InputArray[1] == CodeArray[1] &&
      InputArray[2] == CodeArray[2] &&
      InputArray[3] == CodeArray[3] &&
      InputArray[4] == CodeArray[4] &&
      InputArray[5] == 0 &&
      InputArray[6] == 1 &&
      InputArray[7] == 2 &&
      InputArray[13] == 9) {
        clearArray();
      }

  if (InputArray[8] != 2 &&
      InputArray[9] == CodeArray[0] &&
      InputArray[10] == CodeArray[1] &&
      InputArray[11] == CodeArray[2] &&
      InputArray[12] == CodeArray[3] &&
      InputArray[13] == CodeArray[4]) {
    success();
  }

  if (InputArray[8] != 2 &&
      InputArray[9] == UserCodeArray1[0] &&
      InputArray[10] == UserCodeArray1[1] &&
      InputArray[11] == UserCodeArray1[2] &&
      InputArray[12] == UserCodeArray1[3] &&
      InputArray[13] == UserCodeArray1[4]) {
    success();
  }

  if (InputArray[8] != 2 &&
      InputArray[9] == UserCodeArray2[0] &&
      InputArray[10] == UserCodeArray2[1] &&
      InputArray[11] == UserCodeArray2[2] &&
      InputArray[12] == UserCodeArray2[3] &&
      InputArray[13] == UserCodeArray2[4]) {
    success();
  }

  if (InputArray[8] != 2 &&
      InputArray[9] == UserCodeArray3[0] &&
      InputArray[10] == UserCodeArray3[1] &&
      InputArray[11] == UserCodeArray3[2] &&
      InputArray[12] == UserCodeArray3[3] &&
      InputArray[13] == UserCodeArray3[4]) {
    success();
  }

}
void success () {
//  Serial.println("success");
  digitalWrite(UnlockPin, HIGH);
  delay(PulseTime);
  digitalWrite(UnlockPin, LOW);
  buttonPress(0);
  buttonPresses = 0;
}
void timeOut () {
//  Serial.println("timeout");
if (millis() - lastPress > TimeOutTime) {
  clearArray();
  digitalWrite(BackLight, LOW);
  lastPress = millis() - (TimeOutTime + 1); //lastPress follows millis() just outside of timeout, to prevent problems with millis rollover lighting backlight after 50 days
  buttonPresses = 0;
}  else {
  digitalWrite(BackLight, HIGH);
}
}
void clearArray () {
//  Serial.println("clearArray");
  for (int i = 0; i <= 13; i++) {
    InputArray[i] = 0;
  }
}
void buttonPress (int j) {
//  Serial.println("buttonPress");
  if (millis() - SwitchDownTime > DebounceTime) { // If button was down longer than debounce
    InputArray[0] = InputArray[1];
    InputArray[1] = InputArray[2];
    InputArray[2] = InputArray[3];
    InputArray[3] = InputArray[4];
    InputArray[4] = InputArray[5];
    InputArray[5] = InputArray[6];
    InputArray[6] = InputArray[7];
    InputArray[7] = InputArray[8];
    InputArray[8] = InputArray[9];
    InputArray[9] = InputArray[10];
    InputArray[10] = InputArray[11];
    InputArray[11] = InputArray[12];
    InputArray[12] = InputArray[13];
    InputArray[13] = j;
    lastPress = millis();
    buttonPresses++;
    buttonPressed = 1;
    checkAnswer ();
  } // end if
}
void antiScan () {
//  Serial.println("antiScan");
  if (buttonPresses >= 35) {
    for (int i = 0; i < 60; i++) {
      digitalWrite(BackLight, HIGH); // Light backlight while pressed
      delay(500);
      digitalWrite(BackLight, LOW); // Light backlight while pressed
      delay(500);
    }
  buttonPresses = 0;
  }
}
void doorConfirm () {
//  Serial.println("doorConfirm");
  digitalWrite(LockPin, HIGH);
  delay(PulseTime);
  digitalWrite(LockPin, LOW);
  delay(400);
  digitalWrite(UnlockPin, HIGH);
  delay(PulseTime);
  digitalWrite(UnlockPin, LOW);
  clearArray();
  buttonPresses = 0;
//  Serial.println("Confirmed");
}
void eraseUserCodes () {
//  Serial.println("eraseUserCodes");
//  Serial.println("Erase Mode Started");
  EEPROM.write(0, 8);
  EEPROM.write(1, 8);
  EEPROM.write(2, 8);
  EEPROM.write(3, 8);
  EEPROM.write(4, 8);
  EEPROM.write(5, 8);
  EEPROM.write(6, 8);
  EEPROM.write(7, 8);
  EEPROM.write(8, 8);
  EEPROM.write(9, 8);
  EEPROM.write(10, 8);
  EEPROM.write(11, 8);
  EEPROM.write(12, 8);
  EEPROM.write(13, 8);
  EEPROM.write(14, 8);
//  Serial.println("Erase Mode Finished");
  UserCodeArray1[0] = 8;
  UserCodeArray1[1] = 8;
  UserCodeArray1[2] = 8;
  UserCodeArray1[3] = 8;
  UserCodeArray1[4] = 8;
  UserCodeArray2[0] = 8;
  UserCodeArray2[1] = 8;
  UserCodeArray2[2] = 8;
  UserCodeArray2[3] = 8;
  UserCodeArray2[4] = 8;
  UserCodeArray3[0] = 8;
  UserCodeArray3[1] = 8;
  UserCodeArray3[2] = 8;
  UserCodeArray3[3] = 8;
  UserCodeArray3[4] = 8;
  doorConfirm();
}
